SSM框架整合

(Updated: )
框架

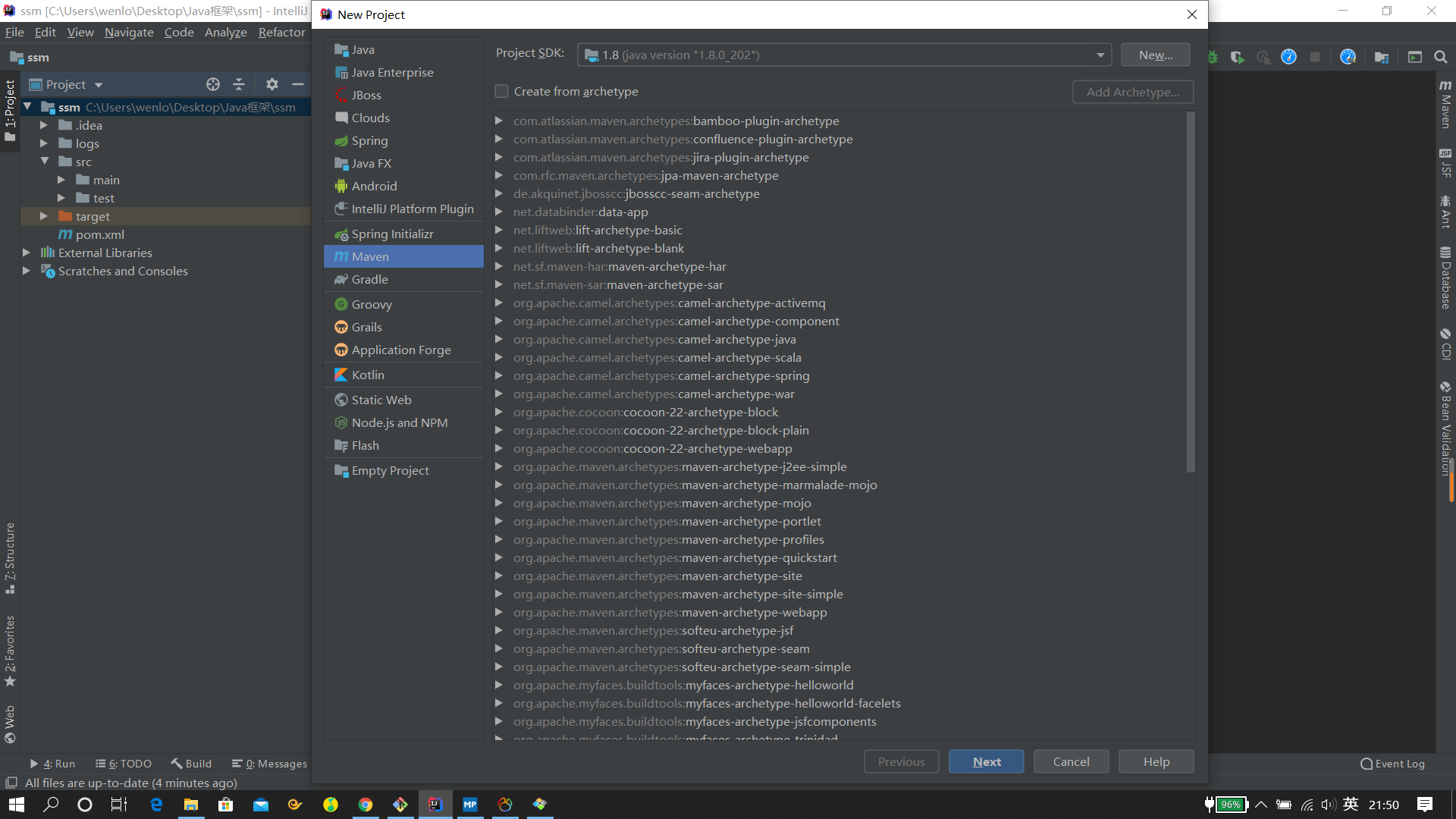

创建 Maven 项目

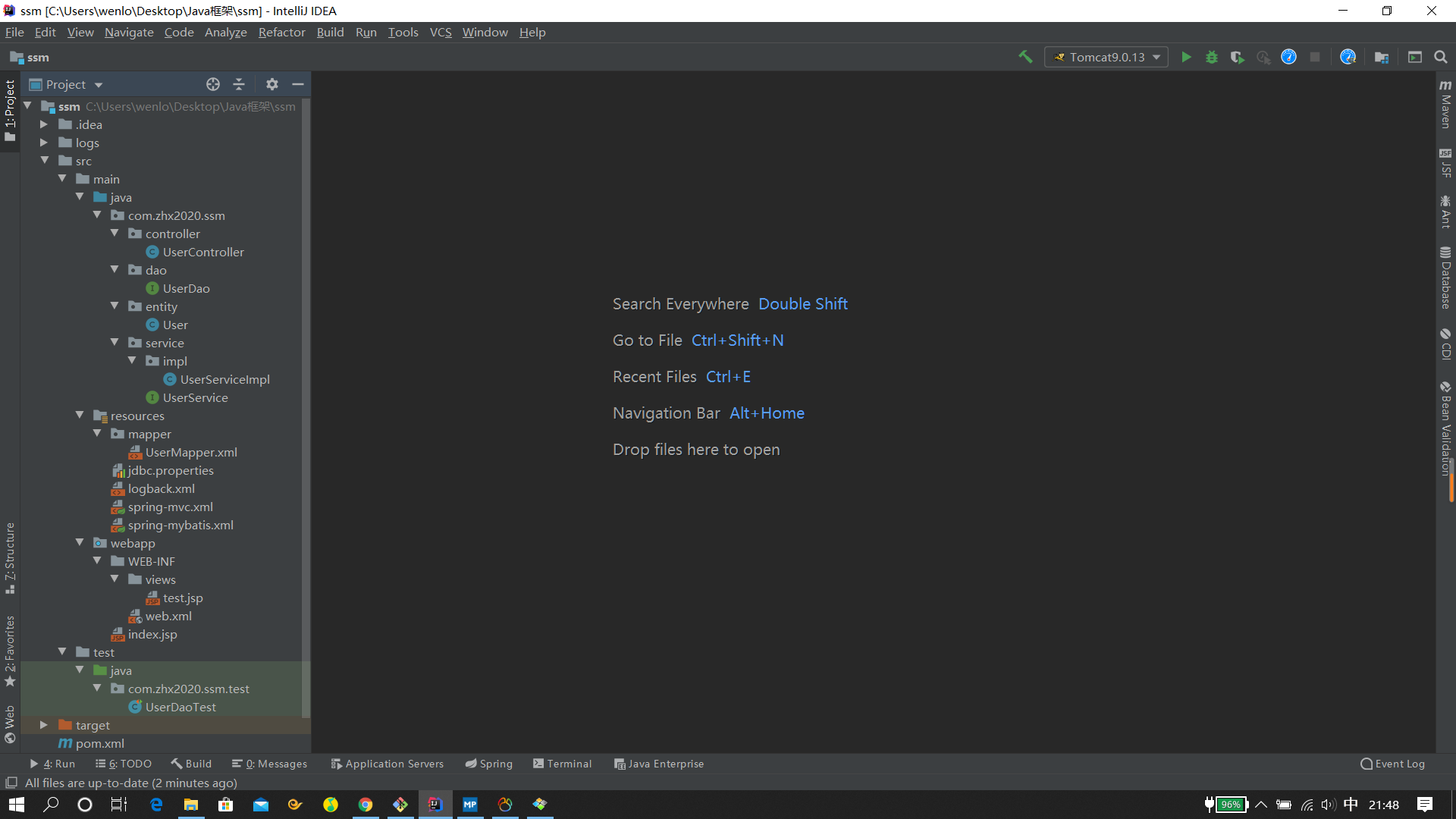

搭建项目目录结构

配置文件内容

pom.xml：声明依赖的 jar 包

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.zhx2020.ssm</groupId>
    <artifactId>ssm</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <name>ssm Maven Webapp</name>
    <url>http://maven.apache.org</url>

    <properties>
        <!-- 设置项目编码编码 -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <!-- spring版本号 -->
        <spring.version>4.3.5.RELEASE</spring.version>
        <!-- mybatis版本号 -->
        <mybatis.version>3.4.1</mybatis.version>
    </properties>

    <dependencies>
        <!-- java ee -->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
        </dependency>
        <!-- 单元测试 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <!-- 实现slf4j接口并整合 -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.2</version>
        </dependency>
        <!-- JSON -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.8.7</version>
        </dependency>
        <!-- 数据库 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.41</version>
            <scope>runtime</scope>
        </dependency>
        <!-- 数据库连接池 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>
        <!-- MyBatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <!-- mybatis/spring整合包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
    </dependencies>

    <build>
        <finalName>ssm</finalName>
    </build>
</project>

web.xml：声明编码过滤器并配置 DispatcherServlet

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">

    <!-- 编码过滤器 -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- 配置DispatcherServlet -->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- 配置springMVC需要加载的配置文件-->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-*.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
        <async-supported>true</async-supported>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <!-- 匹配所有请求 -->
        <url-pattern>/</url-pattern>
    </servlet-mapping>
</web-app>

spring-mybatis.xml：完成 spring 和 mybatis 的配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 扫描service包下所有使用注解的类型 -->
    <context:component-scan base-package="com.zhx2020.ssm.service.impl"/>

    <!-- 配置数据库相关参数properties的属性：${url} -->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!-- 数据库连接池 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="${c3p0.maxPoolSize}"/>
        <property name="minPoolSize" value="${c3p0.minPoolSize}"/>
        <property name="autoCommitOnClose" value="${c3p0.autoCommitOnClose}"/>
        <property name="checkoutTimeout" value="${c3p0.checkoutTimeout}"/>
        <property name="acquireRetryAttempts" value="${c3p0.acquireRetryAttempts}"/>
    </bean>

    <!-- 配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 扫描entity包 使用别名 -->
        <property name="typeAliasesPackage" value="com.zhx2020.ssm.entity"/>
        <!-- 扫描sql配置文件:mapper需要的xml文件 -->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    </bean>

    <!-- 配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.zhx2020.ssm.dao"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- 配置基于注解的声明式事务 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>

</beans>

spring-mvc.xml：完成 SpringMVC 的相关配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

    <!-- 扫描web相关的bean -->
    <context:component-scan base-package="com.zhx2020.ssm.controller"/>

    <!-- 开启SpringMVC注解模式 -->
    <mvc:annotation-driven/>

    <!-- 静态资源默认servlet配置 -->
    <mvc:default-servlet-handler/>

    <!-- 配置jsp 显示ViewResolver -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

</beans>

jdbc.properties：配置 c3p0 数据库连接池

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
jdbc.driver=com.mysql.jdbc.Driver
#数据库地址
jdbc.url=jdbc:mysql://106.15.45.114:3306/ssm?useUnicode=true&characterEncoding=utf8
#用户名
jdbc.username=root
#密码
jdbc.password=123456
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2

logback.xml：完成日志输出的相关配置

1
2
3
4
5
6
7
8
9
10
11
<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="true">
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>%d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern>
        </encoder>
    </appender>
    <root level="debug">
        <appender-ref ref="STDOUT"/>
    </root>
</configuration>

以上就完成了基本的相关配置：

  • 添加进了 SSM 项目所需要的 jar 包
  • 配置好了 spring/mybatis/spring MVC 的相关配置信息（自动扫描 com.zhx2020.ssm 包下的带有注解的类）
  • 通过 xml 配置的方式配置好了日志和数据库

测试 SSM 框架

准备好用来测试的数据库

1
2
3
4
5
6
7
8
CREATE TABLE `user` (
  `id` int(10) NOT NULL AUTO_INCREMENT,
  `name` varchar(50) DEFAULT NULL,
  `pass` varchar(50) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8

INSERT INTO `user` VALUES (1, 'test', '123456');

在 com.zhx2020.ssm.entity 包下创建好对应的实体类 User

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
public class User {
    private int id;
    private String name;
    private String pass;

    public User() {
    }

    public User(int id, String name, String pass) {
        this.id = id;
        this.name = name;
        this.pass = pass;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getPass() {
        return pass;
    }

    public void setPass(String pass) {
        this.pass = pass;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", pass='" + pass + '\'' +
                '}';
    }
}

在 com.zhx2020.ssm.dao 包下创建好 Dao 接口

1
2
3
public interface UserDao {
     User findUserById(int id);
}

在 resources/mapper 下编写 UserDao.xml 映射文件

1
2
3
4
5
6
7
8
9
10
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.zhx2020.ssm.dao.UserDao">

    <select id="findUserById" resultType="com.zhx2020.ssm.entity.User" parameterType="int">
        SELECT * FROM user WHERE id = #{id}
    </select>

</mapper>

在 test/java 下创建一个 UserDaoTest 的测试类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({"classpath:spring-mybatis.xml"})
public class UserDaoTest {

    @Autowired
    private UserDao userDao;

    @Test
    public void testFindUserById() {
        int id = 1;
        User user = userDao.findUserById(id);
        System.out.println(user);
    }

}

运行测试代码，能够获取到正确的信息

1
User{id=1, name='test', pass='123456'}

在 com.zhx2020.ssm.service 包下编写好对应的 UserService 接口

1
2
3
public interface UserService {
     User findUserById(int id);
}

对应的实现类 UserServiceImpl

1
2
3
4
5
6
7
8
9
10
@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserDao userDao;

    public User findUserById(int id) {
        return userDao.findUserById(id);
    }
}

在 com.zhx2020.ssm.controller 下创建 UserController 控制类

1
2
3
4
5
6
7
8
9
10
11
12
13
@Controller
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("/test")
    public String test(Model model) {
        User user = userService.findUserById(1);
        model.addAttribute("user", user);
        return "test";
    }
}

最后在 WEB-INF/views 下创建 test.jsp 用于接收并显示数据

1
2
3
4
5
6
7
8
9
10
11
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Test</title>
</head>
<body>
<h3>test page!</h3>
<h4>show user info</h4>
id=${user.id},name=${user.name},pass=${user.pass}
</body>
</html>

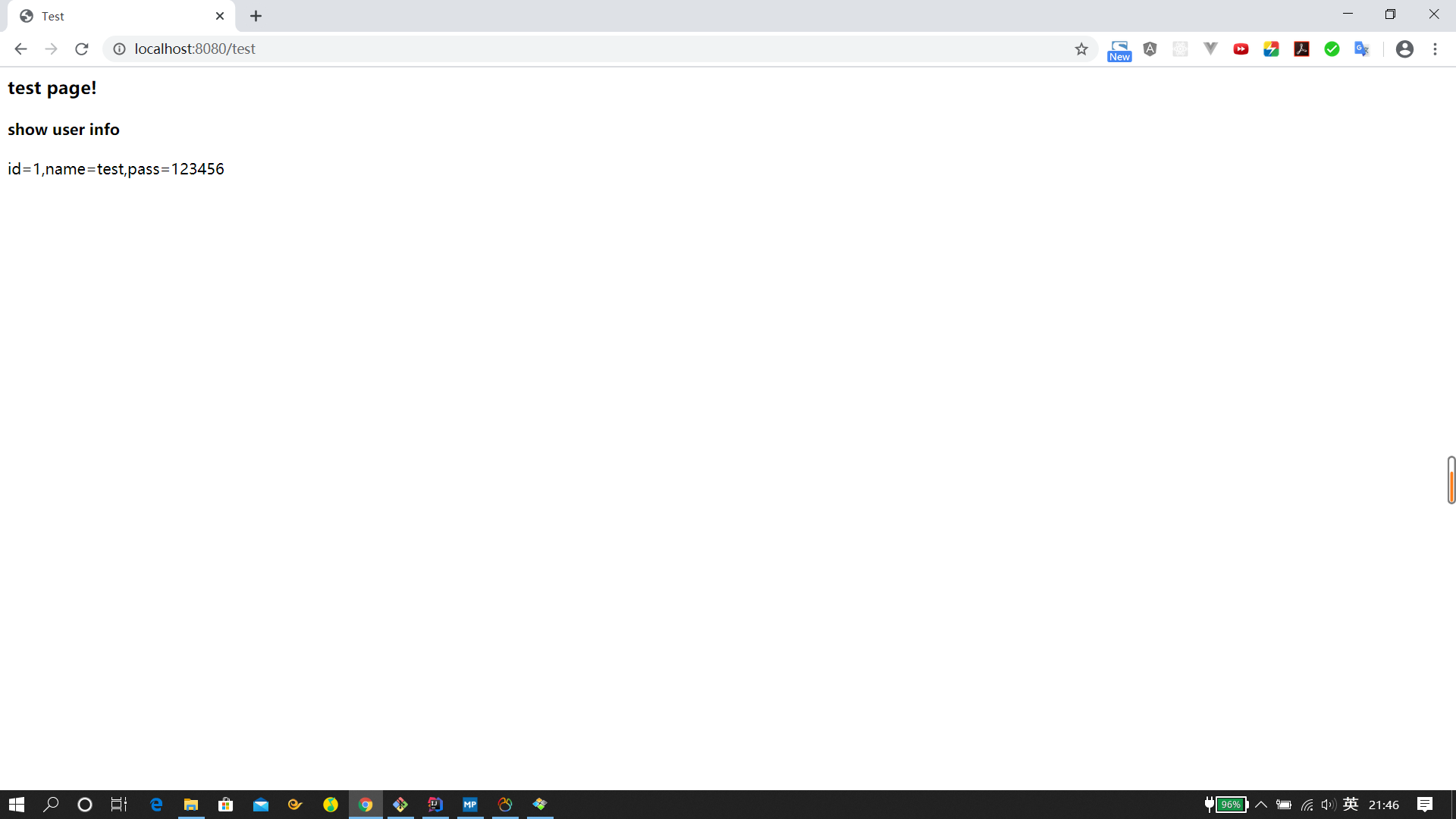

配置好 Tomcat 服务器，运行并在浏览器中输入：localhost:8080/test

即完成了 SSM 的整合！

参考
