实现原理
RPC（Remote Procedure Call）远程过程调用，它是一种通过网络从远程计算机程序上请求服务，而不需要了解底层网络技术的协议。

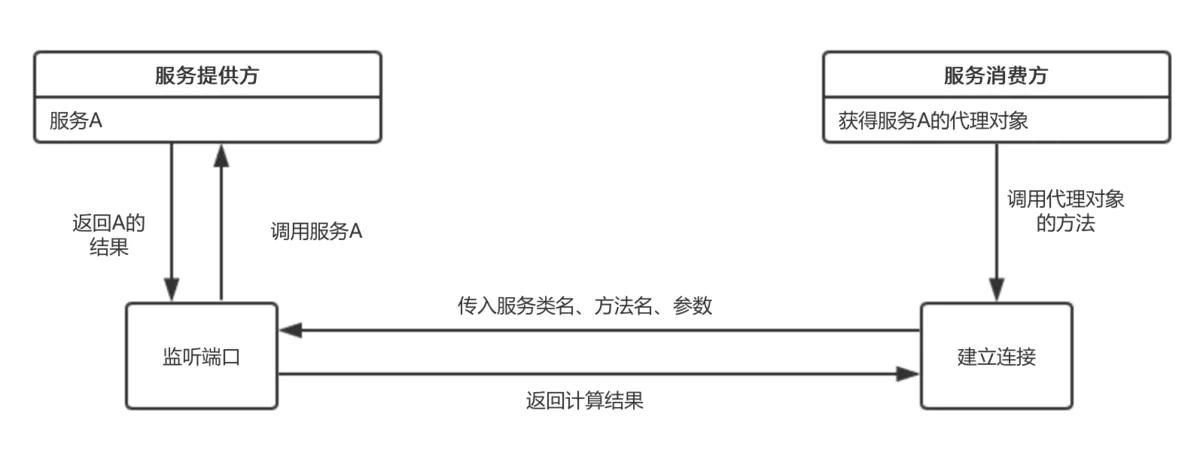

不管是什么样的RPC框架，总体思路都是服务提供方暴露服务，消费方通过服务方提供的接口使用动态代理获取代理对象，然后调用代理对象的方法，代理对象在内部进行远程调用，获得计算结果。简要示意图如下图所示：
在这个过程中，有两处关键点。第一是获取代理对象，第二是代理对象与服务提供方建立连接。对于获取代理对象的方式，需要了解 Java 的动态代理，可参考 Java 的三种代理模式。总的来说，Java 的动态代理（此处只指 JDK 中生成代理对象的 API，不包括 cglib ）把建立远程连接的细节封装起来，使服务消费方可以在仅已知服务提供方的接口的情况下，可以像调用本地对象的方法一样去调用远程服务。
简单实例
通用类
传输实体类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
| public class NetModel implements Serializable {
private static final long serialVersionUID = -1822672222620235061L;
private String className;
private String methodName;
private Object[] args;
public NetModel() {
}
public NetModel(String className, String methodName, Object[] args) {
this.className = className;
this.methodName = methodName;
this.args = args;
}
public static long getSerialVersionUID() {
return serialVersionUID;
}
public String getClassName() {
return className;
}
public void setClassName(String className) {
this.className = className;
}
public String getMethodName() {
return methodName;
}
public void setMethodName(String methodName) {
this.methodName = methodName;
}
public Object[] getArgs() {
return args;
}
public void setArgs(Object[] args) {
this.args = args;
}
@Override
public String toString() {
return "NetModel{" +
"className='" + className + '\'' +
", methodName='" + methodName + '\'' +
", args=" + Arrays.toString(args) +
'}';
}
}
|
User类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
| public class User implements Serializable {
private static final long serialVersionUID = 1101835956823929089L;
private Integer id;
private String name;
private String pass;
public User() {
}
public User(Integer id, String name, String pass) {
this.id = id;
this.name = name;
this.pass = pass;
}
public static long getSerialVersionUID() {
return serialVersionUID;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getPass() {
return pass;
}
public void setPass(String pass) {
this.pass = pass;
}
@Override
public String toString() {
return "User{" +
"id=" + id +
", name='" + name + '\'' +
", pass='" + pass + '\'' +
'}';
}
}
|
UserService接口
1
2
3
4
5
| public interface UserService {
User findUserById(Integer id);
String addUser(User user);
}
|
服务提供方
UserServiceImpl实现类
1
2
3
4
5
6
7
8
9
| public class UserServiceImpl implements UserService {
public User findUserById(Integer id) {
return new User(1, "lx", "123456");
}
public String addUser(User user) {
return "success";
}
}
|
RPCServer服务端
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| public class RPCServer {
public static void openServer() throws Exception {
ServerSocket serverSocket = new ServerSocket(8080);
System.out.println("提供方服务开启，等待消费方调用...");
while (true) {
Socket socket = serverSocket.accept();
System.out.println("消费方开始调用服务：" + socket.getLocalAddress());
ObjectInputStream in = new ObjectInputStream(socket.getInputStream());
NetModel netModel = (NetModel) in.readObject();
String className = netModel.getClassName();
String methodName = netModel.getMethodName();
Object[] args = netModel.getArgs();
Class<?>[] types = new Class[args.length];
for (int i = 0; i < types.length; i++) {
types[i] = args[i].getClass();
}
Class<?> clazz = Class.forName(className + "Impl");
Method method = clazz.getMethod(methodName, types);;
Object object = method.invoke(clazz.newInstance(), args);
ObjectOutputStream out = new ObjectOutputStream(socket.getOutputStream());
out.writeObject(object);
out.flush();
out.close();
in.close();
socket.close();
}
}
public static void main(String[] args) {
try {
openServer();
} catch (Exception e) {
e.printStackTrace();
}
}
}
|
服务消费方
ProxyFactory代理类工厂
1
2
3
4
5
6
7
8
9
10
11
12
| public class ProxyFactory {
private static InvocationHandler handler = new InvocationHandler() {
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
NetModel netModel = new NetModel(proxy.getClass().getInterfaces()[0].getName(), method.getName(), args);
return RPCClient.send(netModel);
}
};
public static <T> T getInstance(Class<T> clazz) {
return (T) Proxy.newProxyInstance(clazz.getClassLoader(), new Class[]{clazz}, handler);
}
}
|
RPCClient客户端
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| public class RPCClient {
public static Object send(NetModel netModel) throws Exception {
Socket socket = new Socket("127.0.0.1", 8080);
ObjectOutputStream out = new ObjectOutputStream(socket.getOutputStream());
out.writeObject(netModel);
out.flush();
ObjectInputStream in = new ObjectInputStream(socket.getInputStream());
Object object = in.readObject();
out.close();
in.close();
socket.close();
return object;
}
public static void main(String[] args) {
UserService userService = ProxyFactory.getInstance(UserService.class);
User user = userService.findUserById(1);
System.out.println("查找结果：" + user);
String result = userService.addUser(new User(2, "test", "123456"));
System.out.println("添加结果：" + result);
}
}
|
运行结果
提供方开启服务
消费方调用服务
1
2
| 查找结果：User{id=1, name='lx', pass='123456'}
添加结果：success
|
提供方显示消费方调用信息
1
2
3
| 提供方服务开启，等待消费方调用...
消费方开始调用服务：/127.0.0.1
消费方开始调用服务：/127.0.0.1
|
